Description:
SD8000 series are professional centralized network video decoder box, it can install 1 - 8 pieces SD6001 video decoder mainboard, it's very convenient to middle or large scale project.
Key Features
• Support BNC connector output
• Support up to 8 decoder card
• Each card support 1 channel D1/4CIF/8QCIF or 2-channel 2CIF/4QCIF or 4 -channel CIF/2QCIF output
• Support D1/ Half-D1/CIF/QCIFresolution
• H.264/MJEG is optional, dual streaming,high compression ratio,and high quality.
• Live sound recording/ restore. network two-way talking. audio broadcasting
• Support RS485 communication protocol, support for multiple PTZ control protocols, transparent serial data transmission
• Supports TCP / IP, UDP, RTP, RTCP, RTSP and other network protocols
• Support motion detection, network fault detection and alarm video, image snapping
• Standard 5U chassis, built-in power module, the Whole machine power supply
|
|
| Interfaces |
| Video input |
CVBS input |
1*(1~8)channel,BNC connector(Level :1.0Vp-p,Impedance:75Ω),PAL/NTSC Self-adapting |
| Audio input |
1*(1~8)channel,RCA connector(Level :2.0Vp-p,Impedance:1KΩ) |
| Audio output |
1*(1~8)channel linear output, RCA connector |
| Audio Talkback |
1*(1~8)channel,3.5mm 3.5mm audio interface(Level :2.0Vp-p,Impedance:1KΩ) |
| Network Interface |
1*(1~8)channel 10/100M BASE-TX,RJ-45 connector |
| Alarm input |
4*(1~8)channel |
| Alarm output |
4*(1~8)channel |
| Control Interface |
1*(1~8)RS485, 1*(1~8)RS232 |
|
| Audio video encoding |
| Video Compression |
H.264/MJPEG |
| Resolution |
D1:704*576(PAL),704*480(N)
Half-D1:704*288(PAL),704*240(N)
CIF:352*288(PAL),352*240(N)
QCIF:176*144(PAL),176*112(N) |
| Video frame rate |
1-25fps/sec OR 1-30fps/sec |
| Video Bitrate |
32Kbps~16Mbps,Supports CBR/VBR |
Video decoding ability
(1 card) |
1-channel D1/4CIF/8QCIF OR 2-channel2CIF/4QCIF OR 4-channelCIF/2QCIF |
| Audio Compression |
G711A,G.726,G711U |
| Patrol |
Supports |
| Group Switching |
Supports |
| Split screen(1 card) |
1/2/4 |
|
| Data transmission |
| Network protocol |
TCP/IP、UDP、RTP、RTSP、RTCP、HTTP、DNS、DDNS、DHCP、FTP、NTP、PPPOE、SMTP、UPNP |
|
| General Parameters |
| Chassis Systems |
Chassis, power plate, etc |
| Card slot |
8 |
| Operating Temperature |
-10℃ - +55℃ |
| Operating Humidity |
0% - 90% |
| Power |
AC110`240V 50/60HZ |
| Power Consumption |
48W(MAX) |
| Chassis |
19 inches standard 5U Chassis |
| Dimension |
486.2(W)*222.25(H) *245(L)mm |
| Weight |
7.5Kg |
|

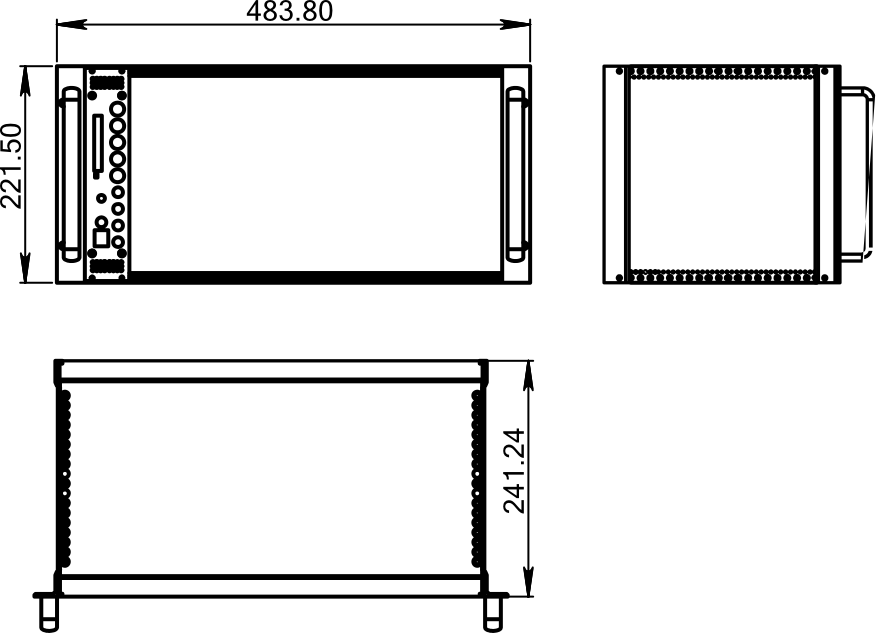

Dimension Drawing:
.png)
