SC8121Z-2MP 20X Zoom Auto Focus IP Box Cameras:  20X zoom auto focus 2 megapixel 1080P HD box IP camera
Description:
SC8121Z-20X is a 20X optical zoom and auto focus 2 megapixel 1080P HD box IP camera with low illumination effect, it use Ambarella SoC chipset and Sony sensor. It is suitable for high resolution, auto focus, excellent image color expression, full frame rate and rich image detail video surveillance occasion, It can supply low bitrate stream HD video image and whole solution for security monitoring application like airport, finance, video conference, digital court etc.


Zoom & AF
With 20X optical zoom and auto focus function, It not only can delivers best view distance but also can realizes perfect auto focus.

3A Control
With built-in broadcast-class 3A auto control processing program, Can auto adjust AWB/AE/AGC depend on the environment scene changes to let the image quality to reach the best effect.

Motion Detection & Privacy Masking
When the video image changed, It can auto detection, linkage alarm and PTZ operate in any time. User can setting multi privacy masking area to prevent the privacy was violated.

Local-storage
With built-in SD/SDHC memory card slot, can keep several days record video in without any external equipment condition.

Multi Video Stream Output
It can output 720P IP data stream, meanwhile can support choose the second stream output CVBS analog video.

HDTV HD Vision
With HDTV performance, It supports full HD 1080P + Full D1 or SXGA + Full D1 dual-stream resolution , 16:9 aspect ratio and supports H.264 main profile in full frame rate and M-JPEG video stream.

WDR + Low Illumination
Built-in day/night ICR filter switching mechanism, really restore image in the day, image clean and less noises at night. Besides It can be used in low illumination, high contrast, strong light environment.

Low Code Stream + High Definition
With perfect low code stream function, the video definition can reach to 720TVL when compress 720P video under 2~4Mbps, when compress 1.3MP video under 3~5Mbps, the video definition can reach to 800TVL, and the video definition can reach to 1000TVL when compress 1080P video under 4~6Mbps.

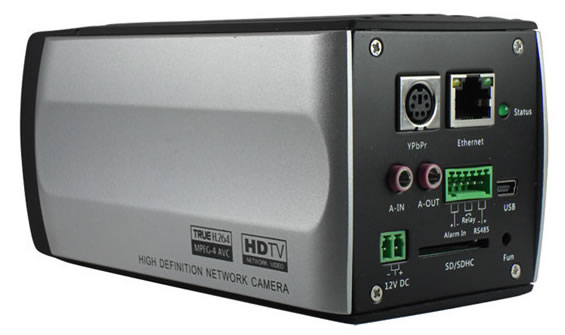

1080P 20x zoom box IP camera
Model
SC8121Z-20X-P
SC8121Z-20X-N
Camera & Lens
Image Sensor
1/2.8″ 2.1MP SONY CMOS
Minimum Illumination
Color:0.1 Lux @(F1.6,AGC ON),ICR ON
B/W:0.05 Lux @(F1.6,AGC ON),ICR OFF
Lens
Focus Length: F=4.7–94 mm; Iris: F=1.6-3.0mm.
Horizontal angle: 54.8°(wide)- 3.4°(tele);Vertical angle: 41°(wide)- 2.5°(tele)
Auto Control
AWB/AGC/AE
Electronic Shutter
1/10000s to 1/25s
Optical Zoom
20X
Video & Audio
Video Compression
H.264 Main Profile @ Level 5.0 / Motion JPEG
Max. Resolution
Full HD/1080P(1920x1080) + Full D1
Horizontal Definition
>950TVL(1920x1080 pixels)
>800TVL(1280x1024pixels)
>700 TVL(1280x720 pixels)
Dual-stream
1080P + Full D1
Frame Rate
25fps
30fps
Video Stream
Multichannel H.264 and M-JPEG video stream: support multi channel video stream output with full frame rate in maximum resolution, frame rate and bandwidth adjustable,H.264 support VBR/CBR.
Audio Compression
G.711, AAC, 16kHz 16bit 32kbps MP2
Network
Protocol
IPv4, TCP/IP, UDP, HTTP, RTP/RTCP/RTSP, FTP, DDNS, NTP, IGMP, ICMP
Security
Password protection, multi-access control.
System Integration
API
Support software API, include SDK and video management center platform, expansion interface electric schematic diagram.
Data interface
RJ45, CVBS, SDHC, Alarm In/Out,RS485,Audio In/Out ,Adapter etc.
Others
Adapter
Standard Configuration: DC 12V,Consumption < 5W
-1:support PoE power supply optional
Temperature / Humidity
0℃~50℃, 20-80% RH (non-condensing)
Size / Weight
154x80x75mm, 600g

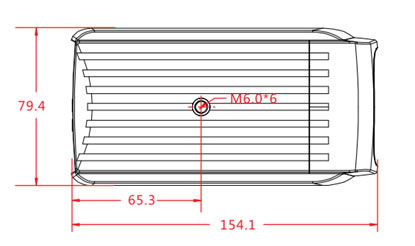

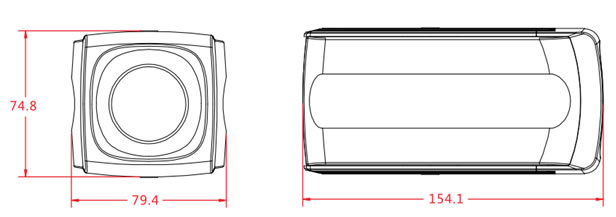

1080P 20x zoom box IP camera size

1080P 20x zoom box IP camera size

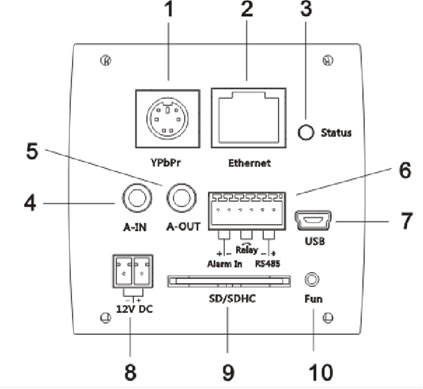

1080P 20x zoom box IP camera interface
