SN-ISC3500-ET 32ch 720P/16ch 1080P RAID5 NVR Linux NVR:  32ch 720P / 16ch 1080P 8 HDDs RAID5 Embedded Linux NVR
Description:
SN-ISC3500-ET is a new-generation network video recorder (NVR) developed by Sysvideo for full digital monitoring. Integrating a range of features such as audio and video code compression, and data transmission and storage, the device is suitable for application in various indoor and outdoor environments. With a rich set of ports for alarm input and output, it can readily suit various scenarios of indoor and outdoor surveillance networking. Suitable for education, medical, financial, power and other small and medium-sized campus monitoring project. Built on a compact structure, it operates on an embedded operating system and provides a complete range of audio/video handling capabilities. It supports network video access in various resolutions, such as CIF, D1, 720P, and 1080P.


•Third-party IP cameras supported with ONVIF conformance

•Direct-to-iSCSI data block storage, second-level retrieval, instant playback

•8/16-ch sync playback

•DVI-D, VGA output up to 1080p

•Triple-display output

•8 SATA HDDs up to 32TB

•Hot-swappable HDDs

•JBOD, RAID1, RAID5

•Hot spare disk for RAID5

Software Interface:



CMS EZStation



RAID5 NVR CMS EZStation



RAID5 NVR IE Search IP Camera

RAID5 NVR IE Search IP Camera

RAID5 NVR IE Hard Disk Array Setting

RAID5 NVR IE Hard Disk Array Setting



RAID5 NVR IE Video Monitor

RAID5 NVR IE - View

RAID5 NVR IE 4 Channels View

 RAID5 NVR IE 4 Channels View



RAID5 NVR IE 10 Channels View



RAID NVR IE 8CH



RAID5 NVR IE 36 Channels View

RAID5 NVR IE 36 channels View





SN-ISC3500-ET

Video

IP Video Input

32-ch

CVBS Output

1-ch, BNC (1.0Vp-p, 75Ω)

VGA Output

1-ch, resolution: 1920*1080@60,1280*720@60,1280*1024@60,1024*768@60,1600*1200@60

DVI-D Output

1-ch, resolution: 1920*1080@60,1280*720@60,1280*1024@60,1024*768@60,1600*1200@60

Recording resolution

1080P / 720P / D1 / 2CIF / CIF

Sync Playback

16-ch

Audio

Output

2-ch, BNC

Two-way Talk

2-ch Input, 2-ch Output (Reuse the audio output channel), BNC

Hard Disk Driver

Interface Type

8 SATA interfaces

Capacity

Up to 4TB capacity for each HDD

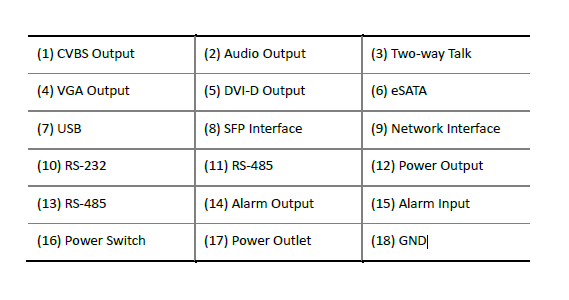

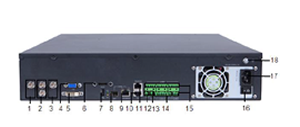

External Interface

Network Interface

1 RJ45 10M/100M/1000M adaptive Ethernet Interface, 1 1000M Base-FX SFP Interface

USB Interface

2 USB2.0 interfaces

Serial Interface

1 RS-232 , 2 RS-485

Alarm Input

16-ch

Alarm Output

4-ch

Power Output

12 VDC, 12 W (MAX)

eSATA

1 eSATA

General

Power Supply

100 ~ 240 VAC

Consumption

≤ 40 W (without HDD)

Working Temperature

-10°C ~ + 55°C (14°F ~ 131°F)

Working Humidity

10% ~ 90%

Weight

10.0 kg / 22.0 lb (without HDD)

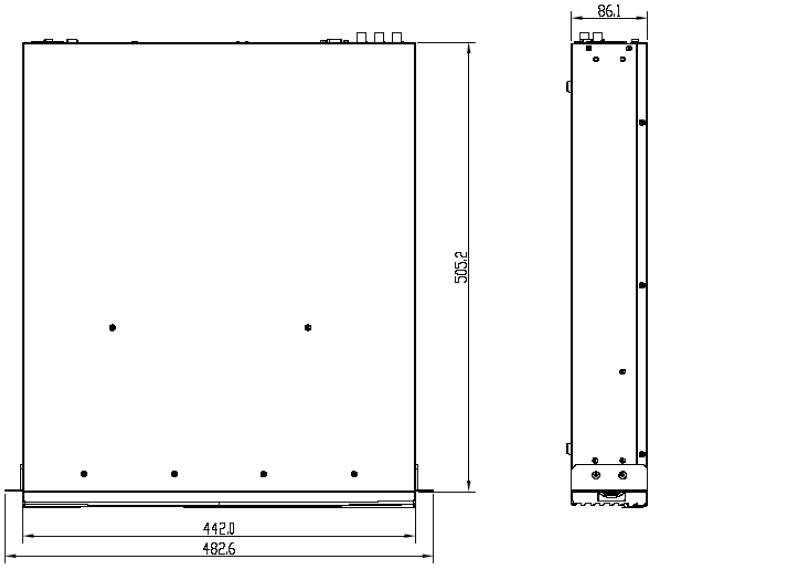

Dimensions (W x D x H)

536.0 × 442.0 × 86.1 mm (21.1” × 17.4” × 3.3”)
